Computerized Fabric Edge Cutting Machine
Productdetails:
| Plaats van herkomst: | Guangdong, China |
| Merknaam: | YUTENG |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 |
|---|
|
Gedetailleerde informatie |
|||
| Gewicht: | 750 kg | Kerncomponenten: | PLC, motor |
|---|---|---|---|
| Machinegrootte: | 3200*2200*2500mm | Snijbreedte: | 2400 Mm |
| Snijlengte: | Min 30cm-oneindig | Snijsnelheid: | Verticale snede 10 m/min, horizontale snede 5 s/snede |
| Machinegewicht: | 600 kg | Max Power: | 1,8 kW |
| Spanning: | 380V/50Hz, 3-fase | PLC interface: | 5-duim kleurentouch screen |
| Materiële voeding: | Synchrone drukbalk | Machineontwerp: | Doosvorm, geoptimaliseerd |
| Model: | YTCM96-C | Type snijden: | Cross-cutting, slitten, edge snijden |
| Fase: | 3-fase | ||
| Markeren: | computerized fabric cutting machine,edge cutting machine for textiles,computerized fabric trimmer with warranty |
||
Productomschrijving
Computerized Fabric Edge Cutting Machine
Product Features
- 5-inch color touch screen PLC interface for easy operation
- CE-certified computer materials, electrical components, and motors for extended service life
- Electric length adjustment for both cutting length and width
- Synchronous pressure bar for even material feeding and smooth cutting, especially for thin material edge trimming
- Optimized box-shaped design improves running speed and cutting quality with higher efficiency
Applications
Ideal for seat covers, sofa cushions, quilt covers, bedcovers, home decoration, export packaging, bedding processing, and automatic cutting after sewing. Suitable for cross-cutting, slitting, edge cutting, quilting products, and composite products. Can also be used as a standalone machine.
Technical Specifications
| Model | YTCM96-C |
|---|---|
| Machine Dimensions (L×W×H) | 3200×2200×2500 mm |
| Cutting Width | 2400 mm (customizable) |
| Cutting Length | Minimum 30 cm to unlimited |
| Cutting Speed | Vertical cut: 10 m/min, Horizontal cut: 5 s/cut |
| Machine Weight | 600 kg |
| Maximum Power | 1.8 kW |
| Voltage | 380V/50HZ, 3-Phase |
* Customized models available to meet specific requirements

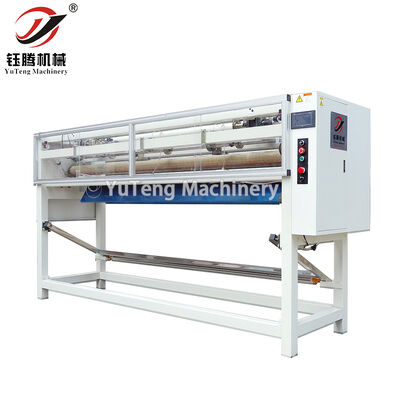

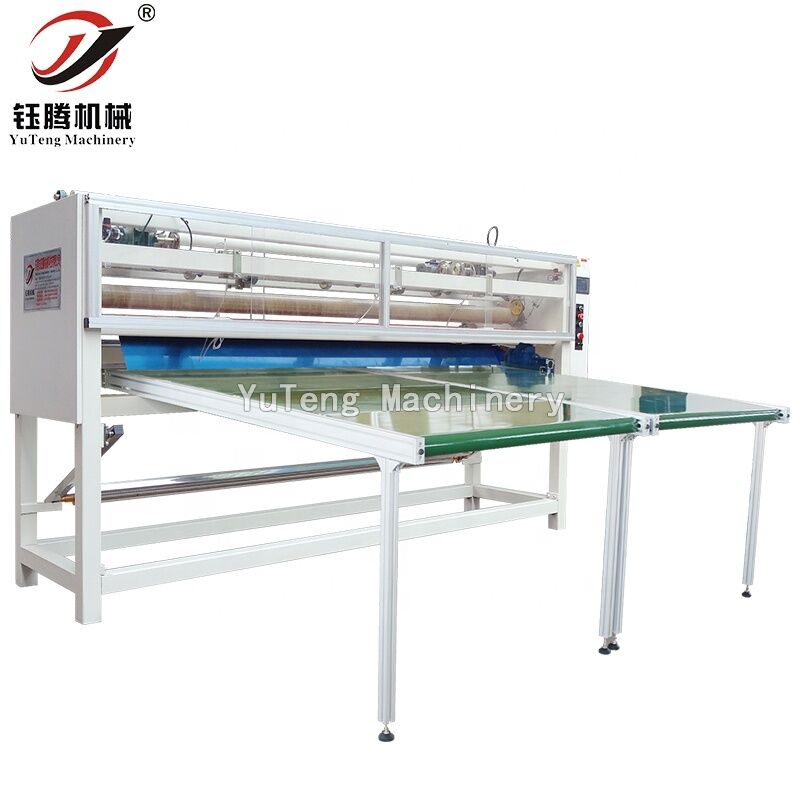

Product Images
